50立方米CADR實驗艙清潔空氣輸送率（CADR）測試試驗條件要求
Annex A
(Regulations)
Clean Air Delivery Rate (CADR) Test
清潔空氣輸送率（CADR）測試
A.l Scope of Application適用范圍
This standard shall be applied to the testing method of Clean Air Delivery Rate capability of "air cleaner".
本標準適用于“空氣凈化器”潔凈空氣輸送速率能力的測試方法。
A.2 Test Conditions試驗條件
If not specified otherwise, air environment conditions for test are as follows.
a) temperature: 23±5°C
b) relative humidity: 55±15%
如未另行規定，試驗的空氣環境條件如下
a）溫度：23±5°C
b）相對濕度：55±15%
A.3. Clean Air Delivery Rate (CADR) capability清潔空氣輸送率（CADR）能力
A.3.1. Test Device 測試裝置
Test device shall meet the requirements as below. For any items not specified in this annex, general methods are
applied試驗裝置應滿足以下要求。對于本附件中未規定的任何項目，采用一般方法。
A3.1.1. Test Chamber 試驗箱
A.3.1.1.1. Structure and Shape 結構和形狀
When Clean Air Delivery Rate (CADR) is more than 0.1 m3/min and less than 1.6 m3/min, it shall be tested in a chamber of 8.0±0.5 m3 and when it is more than 1.6 m3/min and less than 16.0 m7min, it shall be tested in a chamber of 29.5±1 m3, when CADR more than 16.0 mVmin, it shall be tested in a chamber of 50.0±l m3. The test chamber, as shown in Picture Al.4, shall be of a rectangular parallelepiped shape (regular hexahedron is possible).
The inside of the test chamber shall be structured with anti-static panels. The test chamber shall be equipped with high-performance (above HEPA) filter that can supply air that meets background concentration (4.1.1.2), an inlet connected with a control valve, and an outlet connected with a damper thatdischarges excessive indoor air automatically.
當潔凈空氣輸送率（CADR）大于0.1 m3/min小于1.6 m3/min時，應在8.0±0.5 m3的試驗箱，當大于1.6 m3/min且小于16.0 m7 min時，應在室29.5±1 m3，當cadr大于16.0 mvmin時，應在50.0±l m3的室中進行試驗。測試如圖A1.4所示，腔體應為矩形平行六面體（可為正六面體）。試驗室內部應配備防靜電面板。試驗室應配備高性能（HEPA以上）過濾器，可提供滿足背景濃度（4.1.1.2）的空氣，入口與控制閥連接，出口與自動排出過量室內空氣的阻尼器連接。

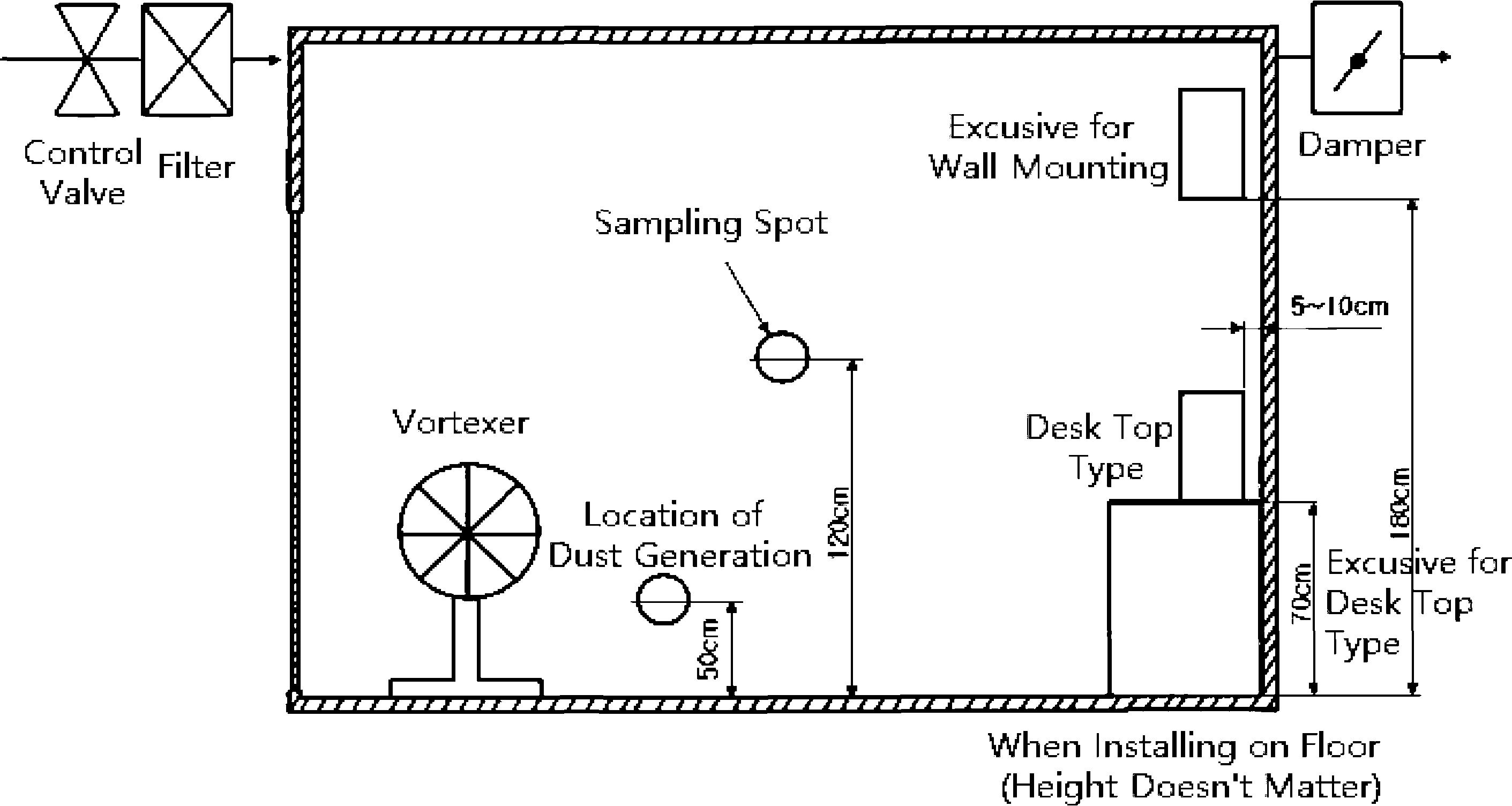

Picture A1.4. Diagram of Central Cross Section of Test Chamber 試驗箱中心截面圖
A.3.1.1.2. Concentration of Background Particles
Concentration of background particles inside the test chamber: It shall be below 3><105 Count/m3 per particle of 0.3
背景粒子濃度
試驗室內背景顆粒濃度：每粒0.3粒應低于3><105計數/m3。
A?3?l?l?3? Air Tightness
Air tightness of the test chamber shall meet more than 80% of initial particle concentration per particle of 0.3 “m
after 20 minutes. Here, measurement procedure shall in compliance with 4.2.2.
氣密性
試驗室的氣密性應滿足每粒0.3“m顆粒初始顆粒濃度的80%以上。20分鐘后。此處，測量程序應符合4.2.2的要求。
A.3.1.1.4. Concentration of Test Particles
In the test chamber, a particle generator and a vortexer shall be installed in a way that test particles can have uniform
distribution of concentration spatially in a short time period. When measuring, the initial concentration of particles
in the test chamber shall be 1 ?3 x 108 count/m3.
試驗顆粒濃度
在試驗室中，應以試驗顆粒均勻的方式安裝顆粒發生器和渦流器。短時間內濃度的空間分布。測量時，顆粒的初始濃度試驗室內應為1?3 x 108計數/m3。
A?3?l?l?5? Number of Test Specimen試樣數量
The number of test specimens shall follow Table Al.l by the rated air volume of test specimen.根據試樣的額定空氣量，試樣數量應符合表al.l的要求。
Table Al.l.Number of Test Specimens試樣數量
|
額定風量 （立方米/分鐘） |
試樣數量 |
|
低于1.0 |
4 |
|
1.0-2.0
|
3 |
|
2.0-4.0
|
2 |
|
4.0以上 |
1 |
A.3.1.1.6. Installation Position of Test Specimen 試樣安裝位置
Test specimen shall be installed where is specified in the instruction manual of a product. In case it is not specified
in the instruction manual of a product, the followings are applied. 試樣應安裝在產品說明書規定的位置。產品使用說明書未作規定的，按下列規定執行。
- A product (test specimen) of desktop type and desktop/wall mounting shall be installed near wall and on a desk
top 70cm above from the floor. - Floor type shall be installed on the floor near a wall side.
- For wall mounting-exclusive type, the bottom of the product shall be installed 180cm above from the floor.
- In case of installation of 2 test specimens, the center of the test specimens* chambers shall be symmetric with each
other.
a）桌面型和桌面/墻壁安裝的產品（試樣）應安裝在靠近墻壁的地方，并安裝在離地面70cm以上的桌面上。
b）地板類型應安裝在靠近墻側的地板上。
c）對于壁掛專用型，產品底部應安裝在離地面180cm以上。
d）如果安裝了兩個試樣，則試樣室的中心應對稱。
A.3.1.2. Generation of Test Particles試驗粒子的產生
A.3.1.2.1. Particles Generator粒子發生器
It shall be able to generate more than 107 counts of particle per second when potassium chloride solution is sprayed.
Picture A 1.5 shows the example of a particle generation device.噴灑氯化鉀溶液時，每秒應能產生超過107個顆粒。圖A 1.5顯示了粒子產生裝置的示例。
A.3.1.2.2. Handling of Generated Particles產生顆粒的處理
A particle generator shall be designed in a way particles of potassium chloride can dry up before they enter the test
chamber. Dried particles shall be neutralized through a particles neutralizer such as a beta or gamma radioactivity
generator or a corona discharge (air) ionizer. The generating element of radioactivity shall have more than
5millicurie of radioactive energy.顆粒發生器的設計應確保氯化鉀顆粒在進入試驗室之前能夠干燥。干燥顆粒應通過顆粒中和劑（如β或γ放射性發生器或電暈放電（空氣）電離器）中和。放射性發生元件的放射性能應在500萬居里以上。
A.3.1.3. Particle Counter粒子計數器
A particle counter shall be auto light-scattering particle counter specified in KS B 6336 or the same or better kind
than that in terms of performance. It needs noting that a particle counter shall have more than 4 size channels of particle between 0.3“m ~ 3“m.粒子計數器應為KS B 6336規定的自動光散射粒子計數器，或與性能相同或更好的類型。需要注意的是，一個粒子計數器應具有4個尺寸在0.3“m~3”m之間的粒子通道。
.jpg)
東莞市環儀儀器科技有限公司50立方米CADR實驗艙整理參考
